Sony Pregius S IMX900 ES – 3.2 MP Global Shutter CMOS Sensor

3.2 MP CMOS sensor with global shutter and NIR sensitivity, ideal for compact imaging in logistics, robotics, and industrial systems.

sony

Explore IMX900:

Awaiting product image

Important Update

This component is now available through our sister company, RESTAR FRAMOS. For a production-ready alternative, explore our compatible integrated modules.

Recommended Upgrade

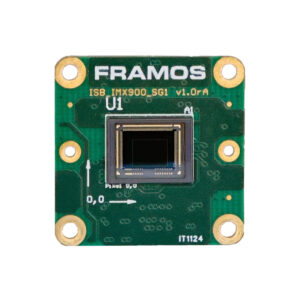

FSM:GO IMX900 Color Camera Module

Integrated module version with optimized circuitry and platform support.

View Module Solution →
OR
Raw Component

Buy via RESTAR FRAMOS

Purchase this component directly through our sister company.

Visit RESTAR FRAMOS →

Product Summary

The IMX900-AMR ES is a 3.2 MP CMOS sensor designed for high-performance, compact imaging systems with global shutter and advanced NIR sensitivity.

The Sony Pregius S IMX900-AMR ES is a cutting-edge CMOS image sensor designed for compact, high-performance imaging systems. Featuring a diagonal size of just 5.81 mm (Type 1/3.1) and using 2.25 µm miniature pixels, it delivers a resolution of 3.2 MP (2064 x 1552), making it ideal for space-constrained applications. Its compact size enables wide-range shooting, reducing camera cost and installation challenges. The IMX900 boasts enhanced near-infrared (NIR) sensitivity, improving recognition accuracy in NIR-lit environments, such as industrial inspection and security applications. It also features advanced technologies like Fast Auto Exposure (AE), Quad High Dynamic Range (HDR), and Quad Shutter Control, allowing precise, flexible control over image capture and minimizing the need for post-processing. This sensor is ideal for barcode reading in logistics, robot vision systems for production lines, and autonomous mobile robots (AMRs) used in manufacturing and supply chains. The IMX900 demonstrates Sony's excellence in creating versatile, high-resolution sensors optimized for the evolving needs of the modern industrial and logistics sectors.

Sony Pregius S IMX900 ES – 3.2 MP Global Shutter CMOS Sensor Highlights

  • 3.2 MP resolution
  • Global shutter
  • Advanced NIR sensitivity
  • Quad HDR and Shutter Control

Targeted Applications

  • Barcode Scanners
  • Robot Vision Systems
  • Autonomous Mobile Robots

Product Specifications

Pixel Size x [µm]Pixel Size x [µm]
2.25
Pixel Size y [µm]Pixel Size y [µm]
2.25
InterfaceInterface
MIPI, SLVS-EC
Bit DepthBit Depth
10, 12, 8
ChromaticsChromatics
Monochrome
Frame Rate [fps]Frame Rate [fps]
113
Horizontal Resolution [px]Horizontal Resolution [px]
2064
Image Diagonal [mm]Image Diagonal [mm]
5.81
ManufacturerManufacturer
Sony
PackagePackage
LGA
Pins / BallsPins / Balls
114
Product TypeProduct Type
Area Sensors
Resolution [MP]Resolution [MP]
3.2
Sensor SizeSensor Size
1/3.1 inch
Sensor TypeSensor Type
CMOS
Shutter TypeShutter Type
Global Shutter
Target ApplicationTarget Application
Autonomous mobile robots (AMRs), Barcode reading, Robot picking
Vertical Resolution [px]Vertical Resolution [px]
1552
