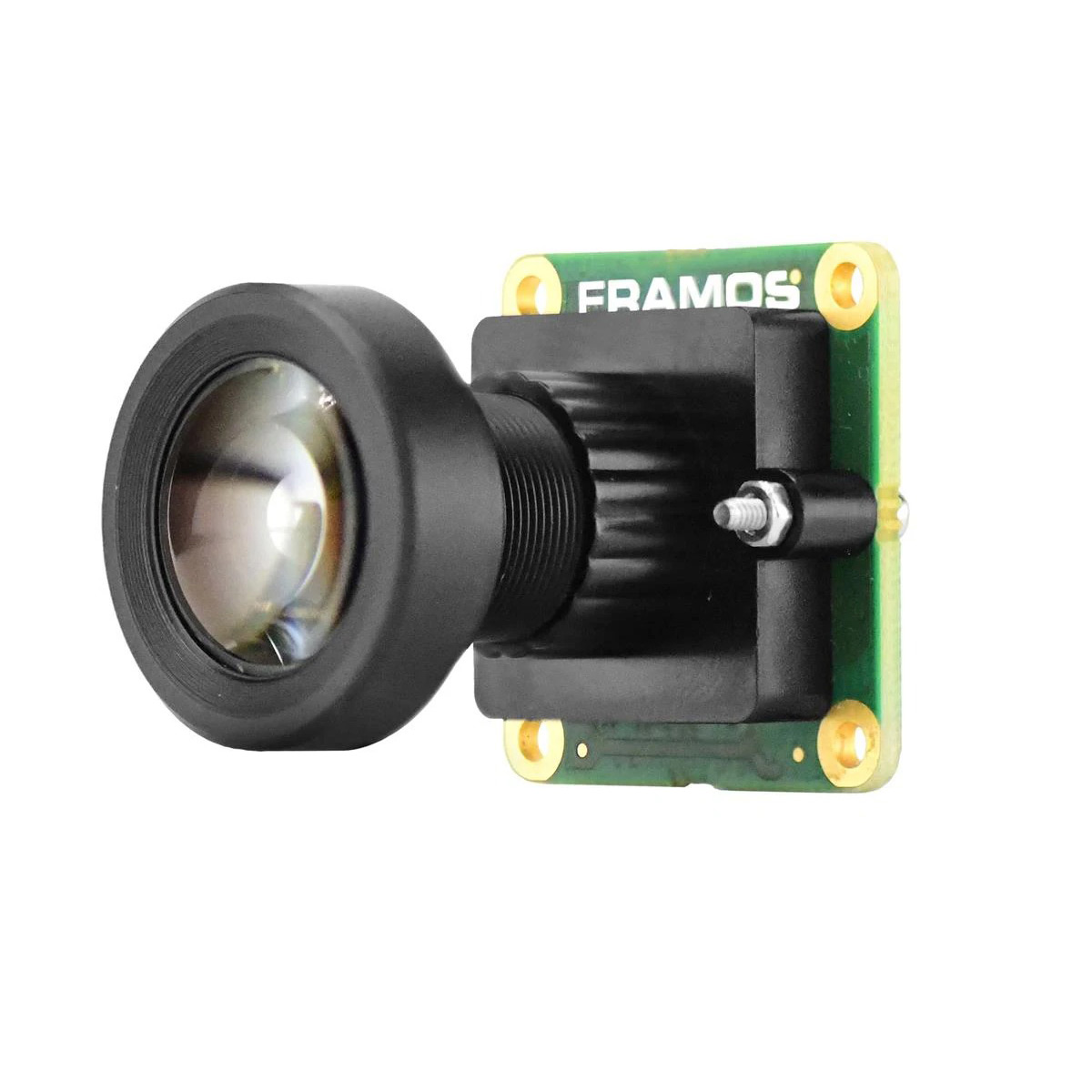

FSM:GO IMX900C Camera Module with 102° HFOV Lens

A wide-angle 3.2 MP global shutter camera module powered by Sony Pregius S, delivering a 102° field of view for maximum scene coverage in dynamic robotics environments.

framos
FSM-GO-IMX900C-M12-L102B-PM-A1Q1_SPL

Product Number: 29190
Category: FSM:GO
Buy now at Mouser

Request a Quote for:

FSM:GO IMX900C Camera Module with 102° HFOV Lens

  • Submit Your Details

    Complete the quote request form with your project requirements and contact information.

  • Discuss Your Needs

    Our specialists will reach out for a brief consultation to ensure we tailor the perfect imaging solution for your application.

  • Receive Your Custom Quote

    We’ll provide a detailed quotation and guide you through the next steps, including evaluation kits, pricing, and timelines.

Purchase standard quantities immediately via Mouser. For high-volume production or custom project support, please request a quote.

Product Base:

FSM:GO IMX900 Color Camera Module

Other Variants:

Click the button to compare these products.

Product Summary

FSM:GO IMX900 combines Sony Pregius S global shutter technology with a fully optimized vision pipeline, delivering a 3.2 MP solution ready for immediate deployment. Equipped with a 102° HFOV lens, it captures a wider scene while maintaining distortion-free imaging, making it ideal for mobile robotics, situational awareness, and dynamic environments.

The FSM:GO camera module, equipped with the IMX900 sensor and a 102° HFOV lens, is designed for applications requiring broad scene coverage and reliable motion capture. Featuring 3.2 MP resolution and Sony Pregius S global shutter technology, it delivers distortion-free imaging across a wide field of view. The 102° HFOV enables enhanced situational awareness in dynamic environments such as mobile robotics and logistics, while the optimized vision pipeline ensures consistent performance and streamlined integration.

FSM:GO IMX900C Camera Module with 102° HFOV Lens Highlights

  • Sony Pregius S global shutter sensor ensures distortion-free capture in fast-moving scenes.
  • Optimized vision pipeline drivers available on GitHub, with platform-specific ISP configuration files for NVIDIA Jetson, NXP, Qualcomm, and Raspberry Pi
  • Pre-tuned image processing delivers predictable color, exposure, and sharpness across supported platforms.
  • Flexible housing and interface options including PixelMate™, FFC, MicroCoax, and GMSL support many device sizes and routing requirements.

Targeted Applications

  • Mobile robotics and AMRs (navigation, obstacle detection)
  • Warehouse and logistics monitoring
  • Smart infrastructure and wide-area surveillance vision systems

Product Specifications

FSM:GO CodeFSM:GO Code
FSM:GO-IMX900C-M12-L102B-PM-A1Q1
Product TypeProduct Type
Optical Module
Sensor NameSensor Name
IMX900C
Sensor ManufacturerSensor Manufacturer
Sony
Sensor TechnologySensor Technology
Pregius S
Shutter TypeShutter Type
Global Shutter
Resolution [MP]Resolution [MP]
3.2
Resolution [Pixel]Resolution [Pixel]
2064 x 1552
Image Diagonal [mm]Image Diagonal [mm]
5.81
Sensor SizeSensor Size
1/3.1 inch
Pixel Size [µm]Pixel Size [µm]
2.25
Frame Rate [fps]Frame Rate [fps]
125
Aspect RatioAspect Ratio
4 : 3
ChromaticsChromatics
RGB
InterfaceInterface
MIPI CSI-2, PixelMateC (60pin)
Enclosure TypeEnclosure Type
None
Lens TokenLens Token
IMX900C-L102B

Resources & Documentation

Available Files & Links
FSM:GO IMX900C Camera Module with 33° HFOV Lens

FSM:GO IMX900C Camera Module with 33° HFOV Lens

FSM:GO IMX900 combines Sony Pregius S global shutter technology with a fully optimized vision pipeline, delivering a 3.2 MP solution ready for immediate deployment. With a 33° HFOV lens, it focuses on high-detail capture at distance, making it ideal for precision inspection, measurement, and applications where accuracy on a defined region is critical.

View Details
FSM:GO IMX900C Camera Module with 76° HFOV Lens

FSM:GO IMX900C Camera Module with 76° HFOV Lens

FSM:GO IMX900 combines Sony Pregius S global shutter technology with a fully optimized vision pipeline, delivering a 3.2 MP solution ready for immediate deployment. Paired with a 76° HFOV lens, it provides a balanced field of view and detail, ideal for robotics, automation, and inspection tasks requiring accurate, distortion-free motion capture.

View Details
