Sony Starvis 2 IMX662 – 2.14 MP Monochrome CMOS Sensor

Name: Sony Starvis 2 IMX662 - 2.14 MP Monochrome CMOS Sensor - FRAMOS
SKU: 27316
Availability: InStock

2.14 MP monochrome CMOS sensor with Full HD resolution and high sensitivity for security cameras.

Explore IMX662:

Important Update

This component is now available through our sister company, RESTAR FRAMOS. For a production-ready alternative, explore our compatible integrated modules.

Recommended Upgrade

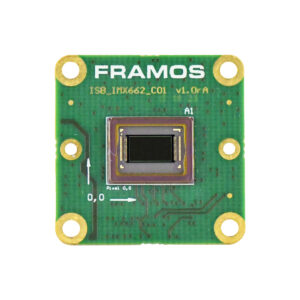

FSM:GO IMX662 Camera Module

Integrated module version with optimized circuitry and platform support.

View Module Solution →

Raw Component

Buy via RESTAR FRAMOS

Purchase this component directly through our sister company.

Visit RESTAR FRAMOS →

Product Overview

The IMX662AAMR-C is a 2.14 MP monochrome CMOS sensor, ideal for Full HD security camera applications requiring high sensitivity and low power consumption.

The Sony Starvis 2 IMX662AAMR-C is a 2.14 MP monochrome CMOS image sensor specifically developed for security camera applications. It features a 6.45 mm (Type 1/2.8) optical format with a pixel array of 1980 x 1080 pixels, delivering Full HD resolution for high-quality video surveillance. The sensor employs a rolling shutter and boasts a pixel size of 2.9 µm x 2.9 µm, ensuring excellent low-light sensitivity and low dark current performance. Operating on a triple power supply (analog 3.3 V, digital 1.1 V, interface 1.8 V), the IMX662AAMR-C is designed for low power consumption, making it suitable for continuous monitoring applications. The sensor supports a maximum frame rate of 90 fps, enabling smooth video capture, even in fast-paced environments. Packaged in an LGA ceramic package, this sensor is rugged and reliable, providing consistent performance in a variety of lighting conditions. Its electronic shutter with variable charge-integration time offers flexible exposure control, ensuring minimal motion blur and clear image capture in dynamic scenes.

Product Specifications

Pixel Size x [µm]: 2.9
Pixel Size y [µm]: 2.9
Interface: MIPI
Bit Depth: 10, 12
Chromatics: Monochrome
Frame Rate [fps]: 90
Horizontal Resolution [px]: 1936
Image Diagonal [mm]: 6.45
Manufacturer: Sony
Package: LGA (Ceramic)
Pins / Balls: 114
Product Type: Area Sensors
Resolution [MP]: 2.12
Sensor Size: 1/2.8 inch
Sensor Type: CMOS
Shutter Type: Rolling Shutter
Target Application: Security
Vertical Resolution [px]: 1100

Resources & Documentation

Available Files & Links

FRAMOS modules built on the IMX662

Ready-to-integrate camera modules, sensor modules and development kits from FRAMOS that use this sensor.

Development kit

FSM-IMX662 Development Kit - 2.4 MP Event-Based Vision Sensing Solution

Advanced development kit for Event-Based Vision Sensing applications, featuring the Sony IMX662 sensor and integrated adapters.

View module

FSM sensor module

FSM-IMX662 Sensor Module

Everything required to start and get an image from the module is available off the shelf, allowing immediate evaluation upon delivery. It is highly recommended to purchase the FSM and platform-specific Development Kit (Devkit) for optimal evaluation.

View module

FSM sensor module

FSM-IMX662C-000-V1A - 2.4 MP Color Sensor Module without Lens Mount

High-performance 2.4 MP color sensor module with Sony IMX662 CMOS Rolling Shutter sensor, no lens mount for custom integration.

View module

FSM sensor module

FSM-IMX662C-01S-V1A - 2.4 MP Color Sensor Module with M12 Mount

2.4 MP color sensor module with Sony IMX662 CMOS Rolling Shutter sensor and M12 mount for flexible integration.

View module

FSM sensor module

FSM-IMX662C-04G-V1A - 2.4 MP Color Sensor Module with C/CS Mount

2.4 MP color sensor module with Sony IMX662 CMOS Rolling Shutter sensor and C/CS mount for flexibility in lens selection.

View module

FSM sensor module

FSM-IMX662C/96B Devkit-Single-V1A - 2.4 MP Sensor Module Devkit for 96board SBCs

Single sensor development kit for 96board Consumer Edition SBCs with Sony IMX662 2.4 MP sensor module.

View module

Development kit

FSM-IMX662C/96B Devkit-Single-V1A - 2.4 MP Sensor Module Devkit for 96board SBCs

Single sensor development kit for 96board Consumer Edition SBCs with Sony IMX662 2.4 MP sensor module.

View module

FSM sensor module

FSM-IMX662C/NVN Devkit-Single-V1A - 2.4 MP Sensor Module for NVIDIA Developer Kits

Complete sensor module devkit for NVIDIA Jetson Nano, TX2 NX, and Xavier NX platforms with Sony IMX662 2.4 MP sensor.

View module

FSM sensor module

FSM-IMX662C/TXA Devkit-Dual-V1A - 2.4 MP Dual Sensor Devkit for NVIDIA AGX Xavier and TX2

Dual sensor devkit for NVIDIA AGX Xavier and TX2 with Sony IMX662 2.4 MP sensors and C/CS mounts.

View module

FSM sensor module

FSM-IMX662C/TXA Devkit-Quad-V1A - 2.4 MP Quad Sensor Devkit for NVIDIA Developer Kits

Quad sensor development kit for NVIDIA platforms with four Sony IMX662 2.4 MP sensors and C/CS mounts.

View module

FSM sensor module

FSM-IMX662C/TXA Devkit-Single-V1A - 2.4 MP Single Sensor Devkit for NVIDIA AGX Xavier and TX2

Single sensor development kit for NVIDIA AGX Xavier and TX2 with Sony IMX662 2.4 MP sensor and C/CS mount.

View module

FSM sensor module

FSM-IMX662C/XX1 Devkit-Single-V1A - 2.4 MP Sensor Module for Xilinx KCU/ZCU Development Boards

Single sensor devkit for Xilinx KCU/ZCU Development Boards featuring the Sony IMX662 2.4 MP sensor and M12 mount.

View module

FSM:GO camera module

FSM:GO IMX662 Camera Module

View module

FSM:GO camera module

FSM:GO IMX662 Camera Module with 137° HFOV Lens

High-performance camera sensor module with Sony IMX662 and 137° HFOV for dynamic AI vision applications.

View module

FSM:GO camera module

FSM:GO IMX662 Camera Module with 58° HFOV Lens

High-performance camera sensor module with Sony IMX662 and 58° HFOV for teleconferencing and focused vision applications.

View module

FSM:GO camera module

FSM:GO IMX662 Camera Module with 86° HFOV Lens

Camera sensor module with Sony IMX662 and 86° HFOV for versatile AI vision applications like access control and surveillance.

View module

FSM:GO camera module

FSM:GO IMX662 Housed Camera Module with 58° HFOV Lens

This is the housed version of the FSM:GO-IMX662C. High-performance camera sensor module with Sony IMX662 and 58° HFOV for teleconferencing and focused vision applications.

View module

Development kit

Sony IMX662 EVB-Kit MIPI

The Sony IMX662AAQR EVB-Kit MIPI offers a versatile platform for evaluating the 2.14 MP RGB sensor with MIPI interface, ideal for industrial imaging.

View module
